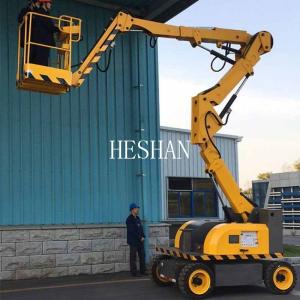

Indoor Outdoor Articulated Boom Lift Aerial Work Telescopic Boom Manlift

  • 1
  • 2

Brand Name : HESHAN

Model Number : GTZZ

Certification : CE,ISO,SGS,ROHS

Place of Origin : China

MOQ : 1 set

Price : USD 8000~USD 30000

Payment Terms : T/T, Western Union, MoneyGram, L/C

Delivery Time : 15-25 work days

Packaging Details : Export packing cases

Application : plant installation, maintenance, venue construction,maintenance, construction engineering, large-scale warehousing, aviation,aerospace industry applications, airports,harbors, urban utilities,gardening, curtain wall engineering

Feature : Easy Operation Safety Convenience, platform 360° rotation, Low noise, Electrostatic spraying painting, Self-Propelled Hydraulic Mobile

Max. Working height : Up-and-over height up to 60'

Power supply : Diesel-powered,Battery powered

Load Capacity : 230kg

Color : Blue, Red, Yellow,Orange

Table Size : 1.83*0.76M

Lifting height : 8m,10m,12m,14m,16m,19m,22m,28m~45m

Power : Diesel,Battery

Machinery Test Report : Provided

Accessories : Basket, Outriggers, Lights, Horns

Controls : Analog/Digital

Drive Speed : 0-5 mph

Horizontal Reach : 20-50 ft

Contact Now

Aerial Working Lift Paltform Telescopic Manlift Indoor Outdoor Aerial Boom Lift

Telescopic manlift indoor outdoor aerial boom lifts offer several advantages over other high-altitude work equipment. Firstly, their telescopic booms allow for greater outreach, enabling operators to access high and hard-to-reach areas with ease. Secondly, their hydraulic systems provide smooth and precise movement, making them ideal for delicate and precise operations. Thirdly, their versatility allows them to be used both indoors and outdoors, making them suitable for a wide range of applications. They are particularly well-suited for tasks that require access to high-altitude areas in both indoor and outdoor environments, such as building maintenance and construction work. Overall, the combination of outreach, precision, and versatility make telescopic manlift indoor outdoor aerial boom lifts a valuable tool for any industry that requires access to high and hard-to-reach areas.
Specification:
Model Type No. GTZZ-12D GTZZ-16D GTZZ-20D GTZZ-24D GTZZ-25D GTZZ-30D GTZZ-38D GTZZ-40D GTZZ-45D
Working Height Max 14 m 18 m 22 m 26.2 m 27.1 m 32 m 40.1 m 42.3 m 47.8 m
Platform Height Max 12 m 16 m 20 m 24.2 m 25.1 m 30 m 38.1m 40.3 m 35.8 m
Working Radius Max 8 m 9.8 m 12.6 m 15.8 m 16 m 20.2 m 21.6 m 21.6 m 23 m
Lifting capacity 200kg 230 kg 230 kg 230 kg 230 kg 480 kg 480 kg 480kg 480 kg
Crossing Height 5m 7.75 m 9.2 m 9.8 m 9.2 m 12.2m 19.5m 19.5m 19.5m
Length( stowed) Ⓓ 5.3m 7.7 m 9.07 m 9.92 m 9.75 m 12.52 m 11.37 m 12.15m 11.6m
Width (stowed) Ⓔ 2m 2.28 m 2.38 m 2.48 m 2.58 m 2.5 m 2.5 m 2.49m 2.5 m
Height(stowed) Ⓒ 2.26m 2.38 m 2.49 m 2.82 m 2.8 m 3.17 m 3.17 m 3.17m 5.1 m
Wheel base Ⓕ 2.4m 2.45m 2.45m 3 m 3 m 3.66 m 3.96 m 3.96m 5.6 m
Ground clearance Ⓖ 200mm 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.43 m 0.38 m
Platform Ⓑ*Ⓐ 1.1*0.67m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 1.83*0.76 m 2.44×0.91m 2.44×0.91m 2.44*0.91m 2.44×0.91m
Tuning radius (inside) 3.0m 2.61 m 2.66 m 2.6 m 2.6 m 2.74 m 3.13m 3.13m 2.69 m
Tuning radius(outside) 5.2m 5.61 m 5.66 m 5.85m 5.85 m 5.85 m 6.5m 6.5m 7.07 m
Speed(stowed) 3.2km/h 4.2km/h 4.2km/h 4.2 km/h 4.2 km/h 4.14 m 4.14 m 4.14m 4.4 km/h
Travel speed(raised) 0.8km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h 1.1km/h
Turn table swing 360° Continuous
Platform Leveling Automatic leveling
Swing Speed 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm 0~0.8rpm
Grade ability 30% 45% 45% 45% 45% 45% 45% 45% 40%
Solid tire 33*12-20 33×12-20 33×12-20 36×14-20 385/65-24 385/65-22.5 385/65-22.5 445/65-22.5 445/65-22.5

Indoor Outdoor Articulated Boom Lift Aerial Work Telescopic Boom Manlift

Indoor Outdoor Articulated Boom Lift Aerial Work Telescopic Boom Manlift

Features & Advantages

  • China's renowned YSD diesel pump station.
  • Electrical box with waterproof and dustproof features, ideal for outdoor use.
  • Control panel that is protected from rain.
  • Self-leveling feature for optimal and safe operation.
  • Water-resistant diesel engine, motor, and battery cover.
  • Maintenance access point designed for easy use.
  • Manually operated diesel engine accelerator, providing more flexible operation.
  • Double cylinders with balance valve and emergency decline switch, ensuring safety even in case of hydraulic hose rupture.
  • Basket leveling switch, making adjustments easier.
  • Torsion shaft with excellent shock absorption for improved road performance.
  • Hydraulic oil filtration alarm system that reminds you to replace oil if impurities are present.
  • Basket and arm lock system to prevent equipment body sway during transportation.
  • Illuminated platform for working.
  • Brake lights connected to the tractor.
  • Anti-pinch basket.
  • Safety harness for operator protection.
  • Stable rotary motor capable of 360-degree rotation.
  • Free quick wear parts for prompt replacement included in the offer.
  • Touch display fault code, easy maintenance.

Touch display fault code, easy maintenance.

When it comes to aerial work, our boom lifts are the best in the business. With their strong ability to reach up and over obstacles, powerful engines, and convenient operation, our machines are perfect for any job. And with world-class brands supplying our main components, you can trust in their quality and reliability.

Advanced Safety Systems:
Our Articulated Boom lift comes equipped with advanced safety systems to protect operators and job sites. These include anti-collision sensors, platform interlocks, and emergency stop functions. These integrated safety features provide peace of mind and ensure compliance with industry standards.
Application Scenario: Construction Projects
In construction projects, the Articulated Boom lift is a versatile and reliable tool for accessing high-rise structures, conducting inspections, and carrying out maintenance tasks. It enables efficient window installation, facade repairs, and painting projects, providing workers with a stable platform and extended reach to perform their tasks effectively and safely at various heights.
